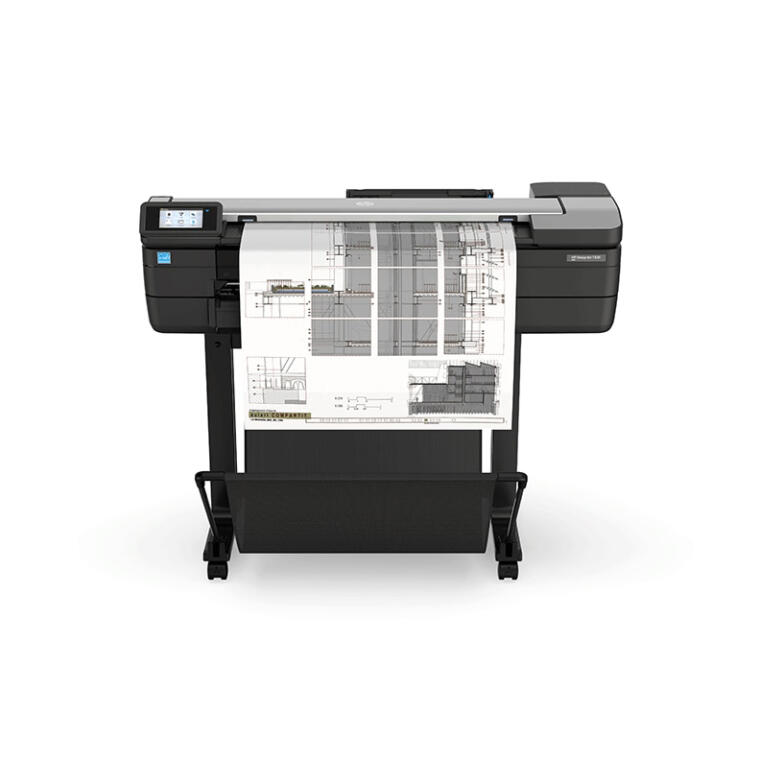

HP DesignJet T830

Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward. We have a range of models available from the HP DesignJet T830 series range.

HP DesignJet T830

Key features

  • Print, scan, copy, and share
  • D/A1-size prints in 25 seconds
  • Easy mobile printing
Show more

Product specifications

HP DesignJet T830
Print, copy, scan
Print time line drawing (economode, A1 plain paper)
26 sec/page
Print speed line drawing (economode, A1 plain paper)
81 A1 prints per hour
Internal Storage
1 GB
Print quality (best) Colour
Up to 2400 x 1200 optimized dpi
Print technology
HP Thermal Inkjet
Number of print cartridges
4 (C, M, Y, mK)
Ink types
Dye-based (C, M, Y) pigment-based (mK)
Scan resolution
optical Up to 600 dpi
Scan size
maximum 610 mm x 2.77 m
Scan size
minimum 203 x 127 mm
Copy reduce / enlarge settings
50 to 400%
Bit depth
Paper handling
Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
Media types
Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media weights
Recommended- 60 to 280 g/m² (roll/manual feed), 60 to 220 g/m² (input tray)
HP ePrint capability, standard Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
Print languages
Power consumption
35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
Scanner type
Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method
Dimensions and weight
Minimum dimensions (W x D x H) 1098 x 605 x 1155 mm
46.7 kg
One-year limited warranty. Warranty and support options vary by product, country and local legal requirements.
